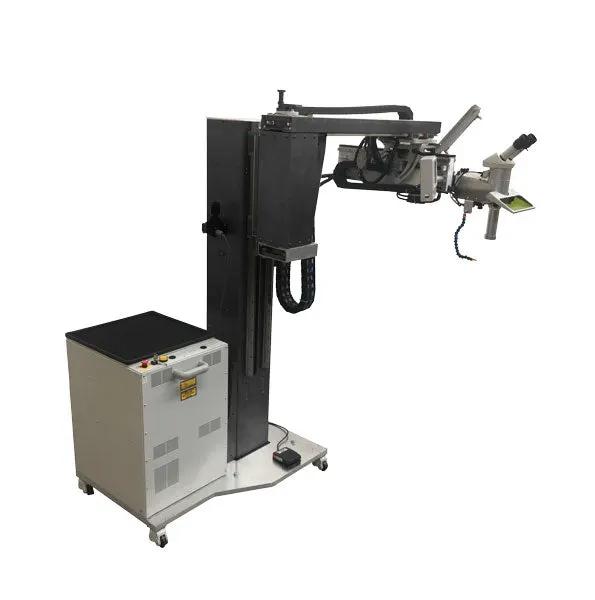

Sunstone DL200 Laser Welder by Sunstone Welders
Sunstone DL200 Laser Welder by Sunstone Welders
Sunstone DL200 Laser Welder by Sunstone Welders
Sunstone DL200 Laser Welder by Sunstone Welders
Sunstone Welders

Sunstone DL200 Laser Welder

Liquid error (snippets/image-element line 113): invalid url input
$69,900.00
/
Shipping always FREE on orders $100+
  • In stock, ready to ship
  • Backordered, shipping soon
  • Manufacturer's warranty
  • Free Domestic Shipping*
  • Ships within 1-2 business days
  • Secure checkout
  • Authorized Retailer

Tackle Any Mold and Die Repair with the DL200 Laser Welders 3-Axis and Tilt Capabilities

The most expensive aspect of the plastics industry is the creation, upkeep, and repair of molds and dies. When molds are damaged, the consequences can be significant in three ways: 1) Repair costs are high, cutting into profits; 2) Repairs consume valuable production time; and 3) Delayed orders due to repairs can put your reputation at risk.

Designed specifically to deliver precision welding to difficult-to-reach positions, the Sunstone DL200 is the perfect solution for repairing large molds or workpieces. The DL200 delivers all the precision you need to nearly any workpiece or situation!

The DL200 makes fast work of shaping and adding metal to worn or damaged molds and dies. More importantly, what separates the DL200 from other laser welders is its 3-axis motor and 2-axis tilt and rotation capabilities.

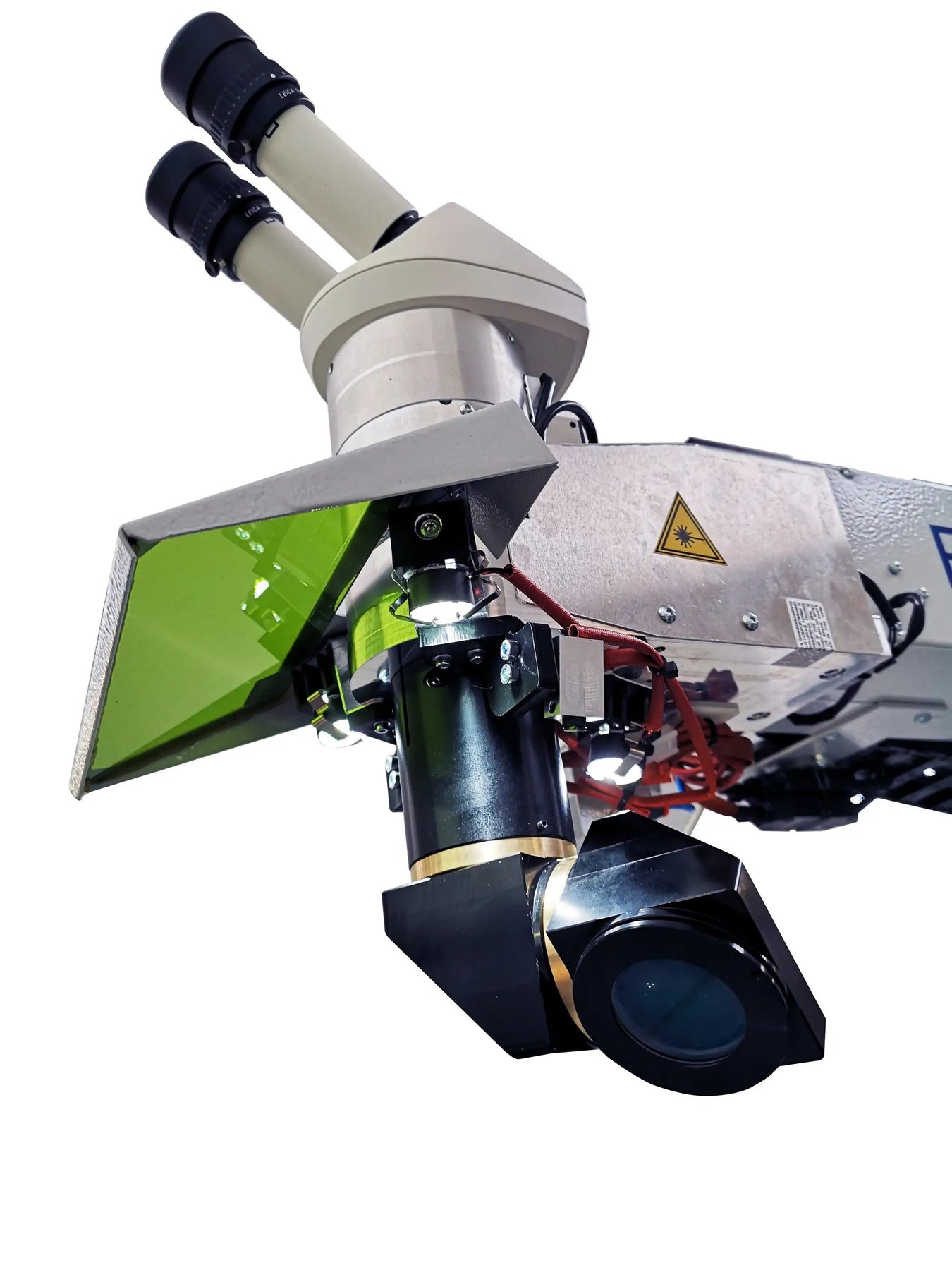

Mounted on an articulating arm, the DL200 easily moves to any position needing repair. The power range is adjustable from 0.1 to 200 joules allowing for work on a wide variety of metal types and applications including:

  • Edge Repairs
  • Hole Repairs
  • Small Weldments
  • EDM Pit Repairs
  • Adding Material for Shimming
  • Tool Repairs
  • Porosity Repairs


The DL200 Laser Welder Features:

  • 200 Joules of maximum energy provides all the power youll need.
  • 3-axis motor lets you automate complex repairs work on curved surfaces.
  • 2-axis tilt and rotation of the welding arm greatly expands repair capabilities, letting you reach nearly any spot on any mold or die.
  • Pulse-shape settings that allow you to configure the weld to specific metallurgic characteristics.
  • Superior, high-efficiency components that run cooler, reduce stress on critical-wear parts, notably longer service life, and reduced maintenance.
  • Repeatable control over laser parameters to deliver precise results with every weld.
  • High-efficiency fiber optics deliver higher average power output with fewer joules.
  • User-friendly, digital touchscreen control.
  • An advanced constant-voltage inverter power supply eliminates power spikes, which improves efficiency and drastically extends the life of the flashlamp.


The DL200 Laser Welder Specifications:

Sunstone DL200 Specifications
AVERAGE POWER
 140 W
PEAK POWER [KW]
 10 kW
ENERGY RANGE
 0.1 - 200 J
LASER SOURCE: WAVELENGTH
 Nd:Ce YAG 1064 nm
IMPULSE TIME
 0.5 - 20 ms
SPOT SETTINGS
 Motorized, 30 Positions
SPOT DIAMETER
 0.6 - 2.0 mm
PROGRAMS 6 Pulse Shaping Presets
MEMORIES CELL STORED
 100
CONTROL JOYSTICK
 On Board
EXTERNAL CONTROL
 Color Touch Screen
INPUT POWER
 110 or 230 V AC, 50/60 Hz - 4.4 kW
AMPERE
 20A
MAX DIMENSIONS [LxWxH]
 109 x 93 x 149 cm
TYPE
 Floor Standing
ARGON / AIR NOZZLE
 Yes / Yes


The DL200 saves time, fattens the bottom line, and improves customer satisfaction. What are you welding today? Call or text us at +1 801-658-0015

DO YOU NEED TRAINING?

Sunstones training team is ready to help you master the DL200 mold and die repair laser welder. Visit our Training Page to learn more.
